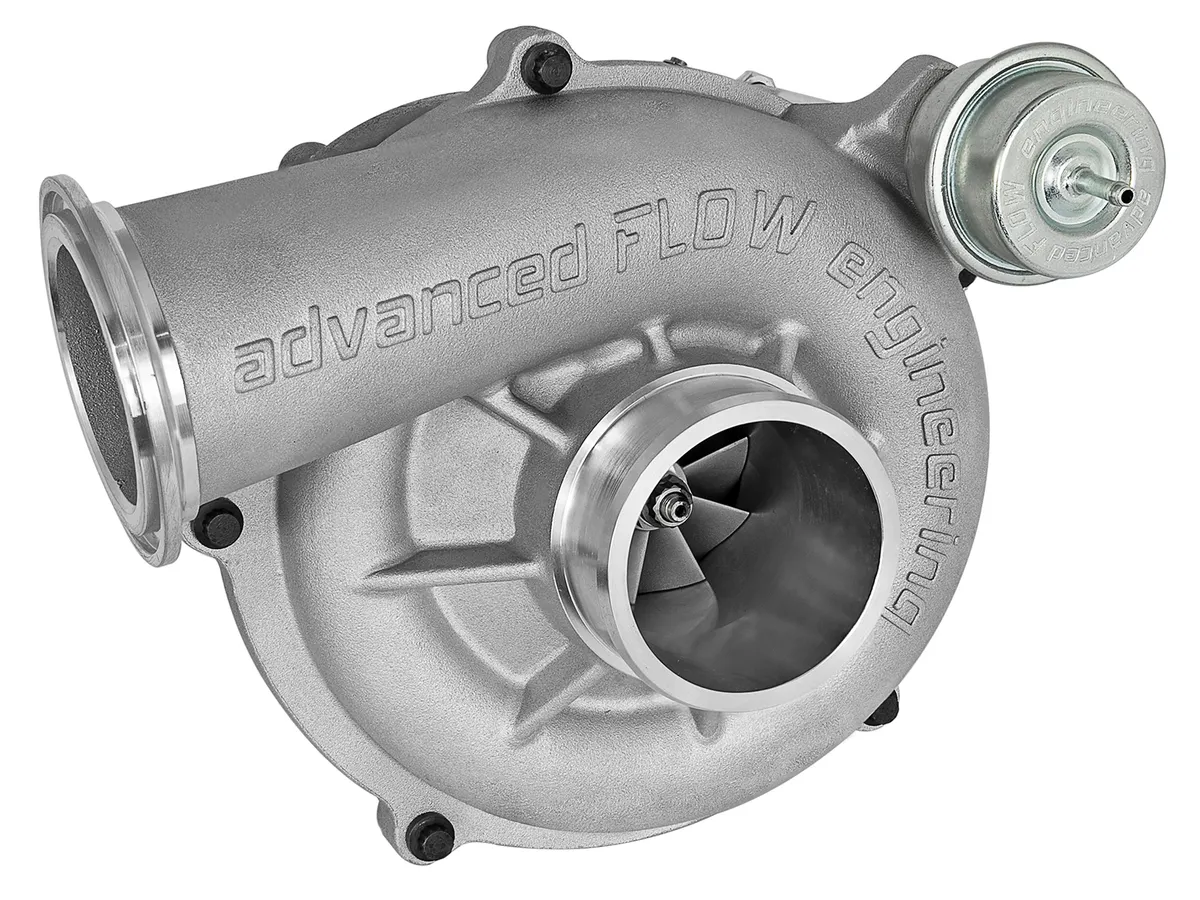

aFe 46-60070 99-03 PowerStroke BladeRunner Turbocharger

Direct Replacement: This turbo can be installed on 1999.5-2003 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Additional fueling is not required for improved performance over OE, but maximum gains are achieved from fuel system upgrades, either electronic or mechanical. An optional high-flow turbine outlet also helps lower exhaust gas temperatures. Compressor: Its A356 aluminum housing utilizes the OE inlet and v-band outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset but is adjustable. Specifications: Compressor inducer - 60 mm Compressor exducer - 80 mm / Trim: 56 mm Turbine inducer - 77 mm Turbine exducer - 67.5 mm/ Trim: 77 mm Exhaust A/R - 0.84

Features:

• Stock replacement with no core charge
• A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
• Additional fueling is not required
• Wastegate actuator is included and comes preset
• In-house testing produced a max gain of 13 hp and 28 lbs. x ft. of torque, verified by aFe's in-house dyno
