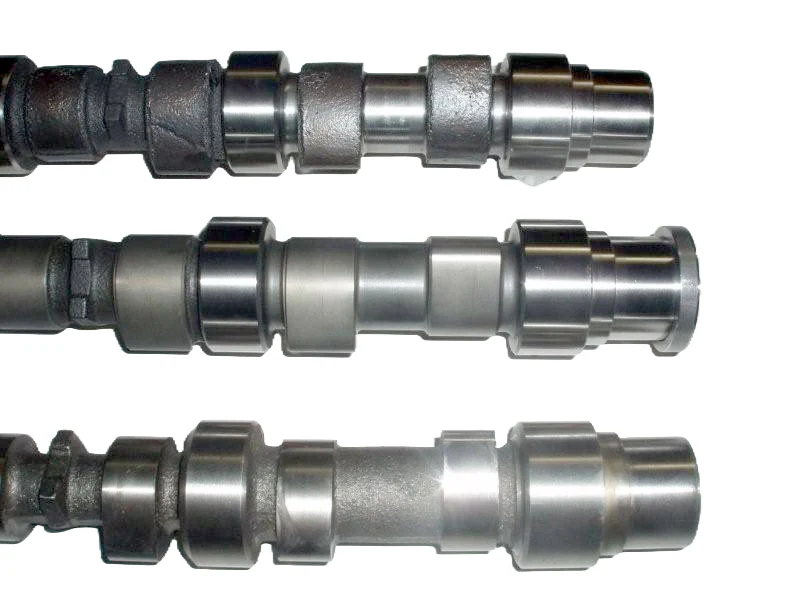

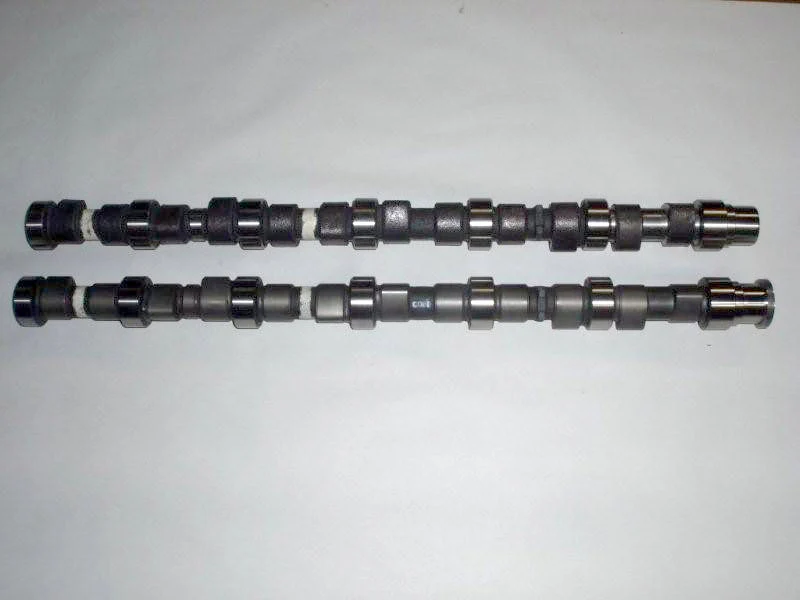

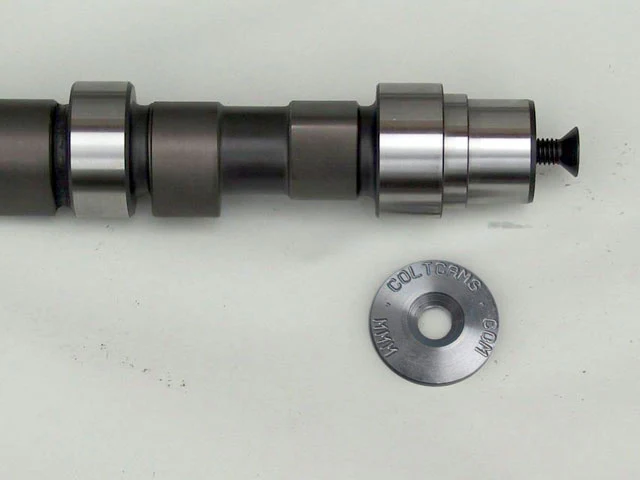

Colt Cams Stage 5 199/218 Cummins Camshaft

• .100" Valve Clearance Required
• Good Up To 5000 RPM
• Great For Large Singles & Compound Turbos
• Duration @ .050 - INT. 199 Degrees, Cam Lift 0.323, Lobe Sep. 108
• Duration @ .050 -EXH. 218 Degrees, Cam Lift 0.323

The Colt Cams Stage 5 199/218 Cummins Camshaft gives your 1989-2017 Dodge 5.9L/6.7L Cummins the boost it needs to make big power! This camshaft is designed for high performance and race engines, good up to 5000 RPM.

• Follow Cummins installation instructions and use adequate amounts of assembly lube.
• Retainer Torque - 44 ft-lbs. Use red Loctite.
• When using retainers on a Commonrail, clearance is required.
• Always use new or re-crowned lifters.
• Recommended for use with Colt Cams Tappets 1.45".
• If using Common Rail lifted with larger head, make sure it clears the fuel pump lobe #5 on 12V engines. CR blocks should be okay but you should still check. If your gear is not pressed on all the way, the lifters could touch.
• Recommended for use with Wagler or Carrillo Connecting Rods.

• Cam lube on all lobes, lifter faces, and oil pump gears.
• Oil all bearing journals and lifter barrels.
• Always turn engine over by hand before starting, check for clearances and proper timing location.
• Fire up to 1800-2000 RPM for 18-20 minutes.

Minimum of 1600 PPM ZDDP (Zinc Additive) Recommended for Break-In. Shop 2200 PPM ZDDP Power Driven Diesel Engine Oil.
