Mahle Motorsports Cast Performance Pistons for 12v Cummins

Mahle Motorsports Cast Performance Pistons for 12v Cummins

Select Piston Size
Select Compression
Select Add 0.080 decking for a 6.7 Crank Making a 6.2 Motor (This option will delay pistons by up to 10 days)
From $318.05

Original: $908.71

-65%
Mahle Motorsports Cast Performance Pistons for 12v Cummins—

$908.71

$318.05

The Story

Includes rings and wrist pin clips.

These Mahle Motorsports Cast Performance Pistons are engineered specifically for 12 valve 5.9L Cummins B-Series engines, and strike the perfect balance between durability, drivability, and horsepower potential. Whether you're building a street-strip beast, a workhorse tow rig, or a competitive pulling truck, these pistons offer the strength and performance needed for demanding applications without sacrificing everyday reliability.



Bore Stroke Rod Comp Height Pin Diam Crown Vol Weight Grams Compression Ratio Alloy Clearance Guide Assembly Part Number
Meas Min Max
High Compression
4.015 4.724 7.559 2.817 1.575 -47.1cc 1119 16.5 M124 0.5 0.0055 0.0065 197952215
4.035 1138 16.6 197952235
4.055 1158 16.8 197952255
Low Compression
4.015 4.724 7.559 2.817 1.575 -52.3cc 1105 15.3 M124 0.5 0.0055 0.0065 197952415
4.035 1124 15.5 197952435
4.055 1144 15.6 197952455

Description

Includes rings and wrist pin clips.

These Mahle Motorsports Cast Performance Pistons are engineered specifically for 12 valve 5.9L Cummins B-Series engines, and strike the perfect balance between durability, drivability, and horsepower potential. Whether you're building a street-strip beast, a workhorse tow rig, or a competitive pulling truck, these pistons offer the strength and performance needed for demanding applications without sacrificing everyday reliability.



Bore Stroke Rod Comp Height Pin Diam Crown Vol Weight Grams Compression Ratio Alloy Clearance Guide Assembly Part Number
Meas Min Max
High Compression
4.015 4.724 7.559 2.817 1.575 -47.1cc 1119 16.5 M124 0.5 0.0055 0.0065 197952215
4.035 1138 16.6 197952235
4.055 1158 16.8 197952255
Low Compression
4.015 4.724 7.559 2.817 1.575 -52.3cc 1105 15.3 M124 0.5 0.0055 0.0065 197952415
4.035 1124 15.5 197952435
4.055 1144 15.6 197952455

You may also like

Thumbnail 1

Dual Steel Ring Marine 155-Degree Coated Skirt Chamfered 12v 5.9L Cummins Piston

$125.00

Thumbnail 1

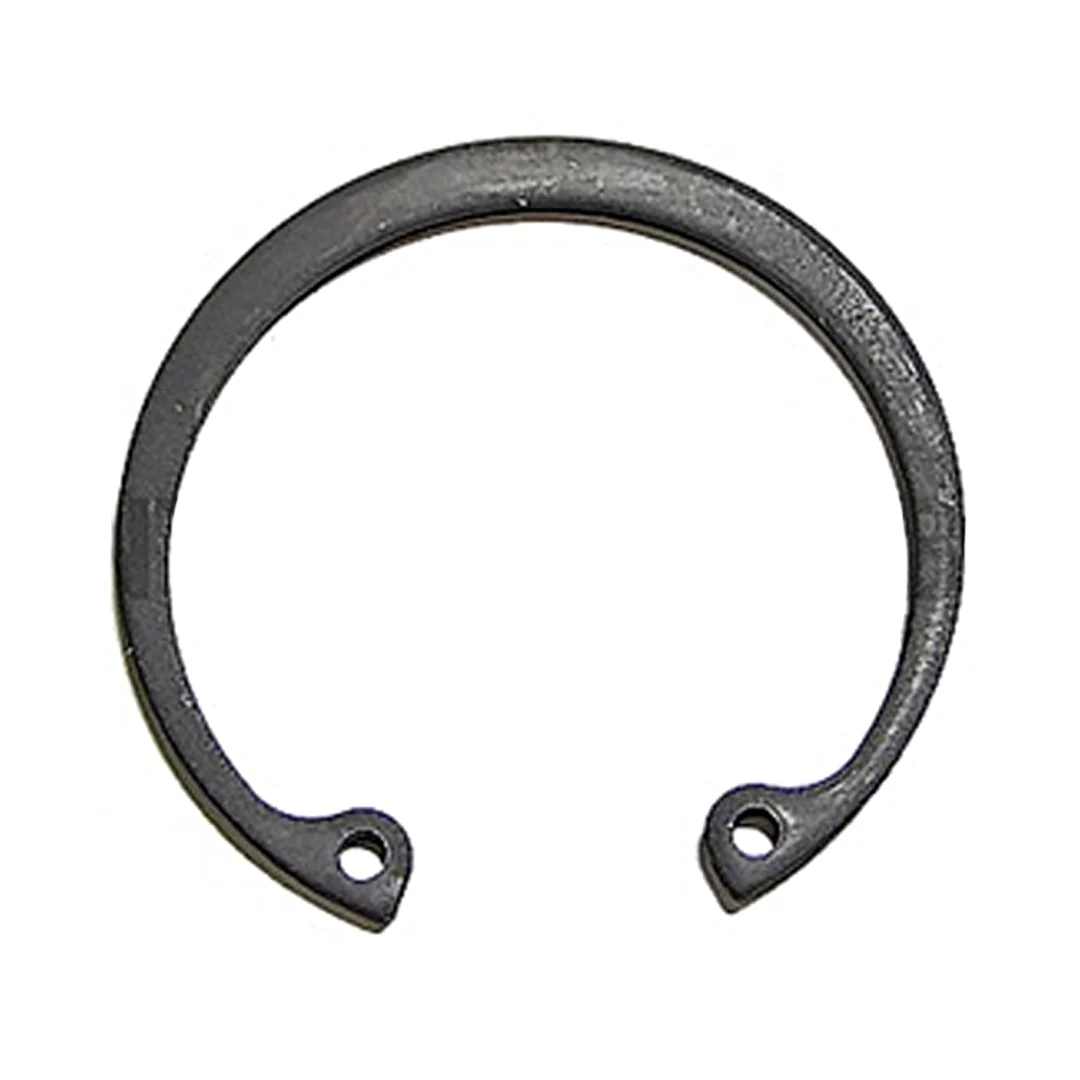

Interstate McBee M-3920691 89-07 Dodge Cummins 5.9L Wrist Pin Retainer Clip

$3.50

Thumbnail 1

Interstate McBee M-3937214 Piston Cooling Nozzle 94-02 Dodge Cummins 5.9L

$1.95

Thumbnail 1

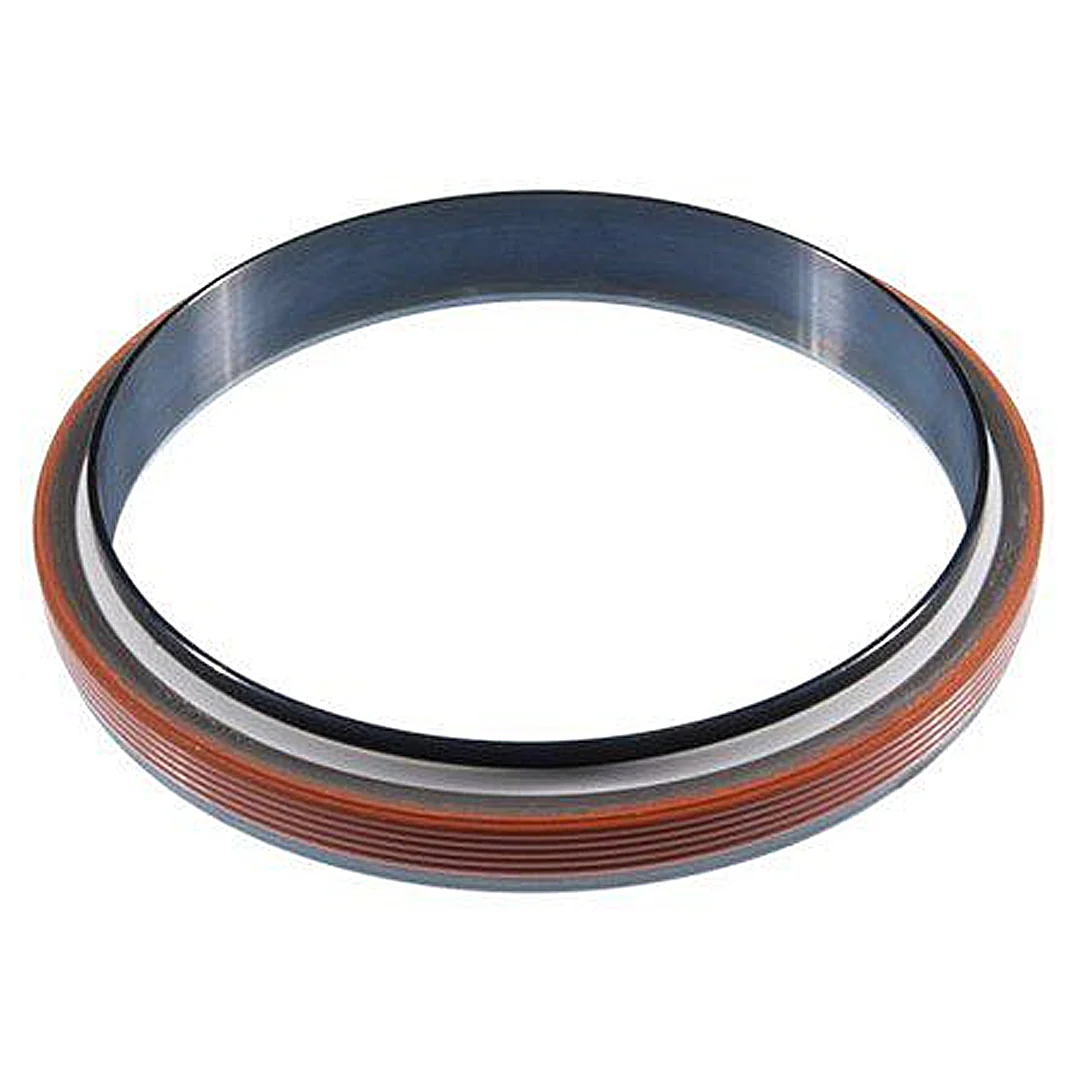

Interstate McBee M-3926126 Rear Crank Seal with Wear Sleeve 89-15 Dodge Cummins

$45.00

Thumbnail 1

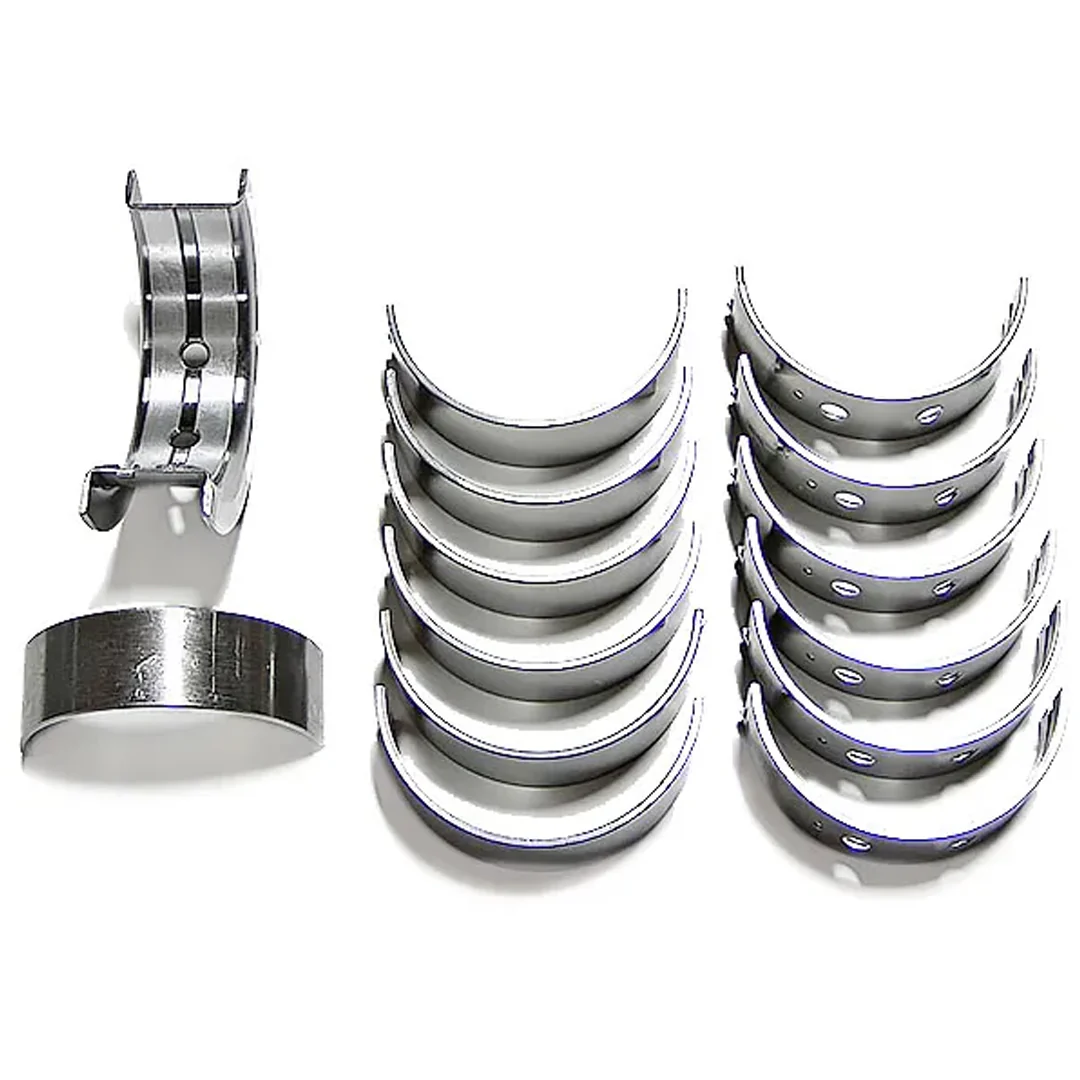

Interstate-McBee Main Bearing Set

$45.00

-65%
Thumbnail 1

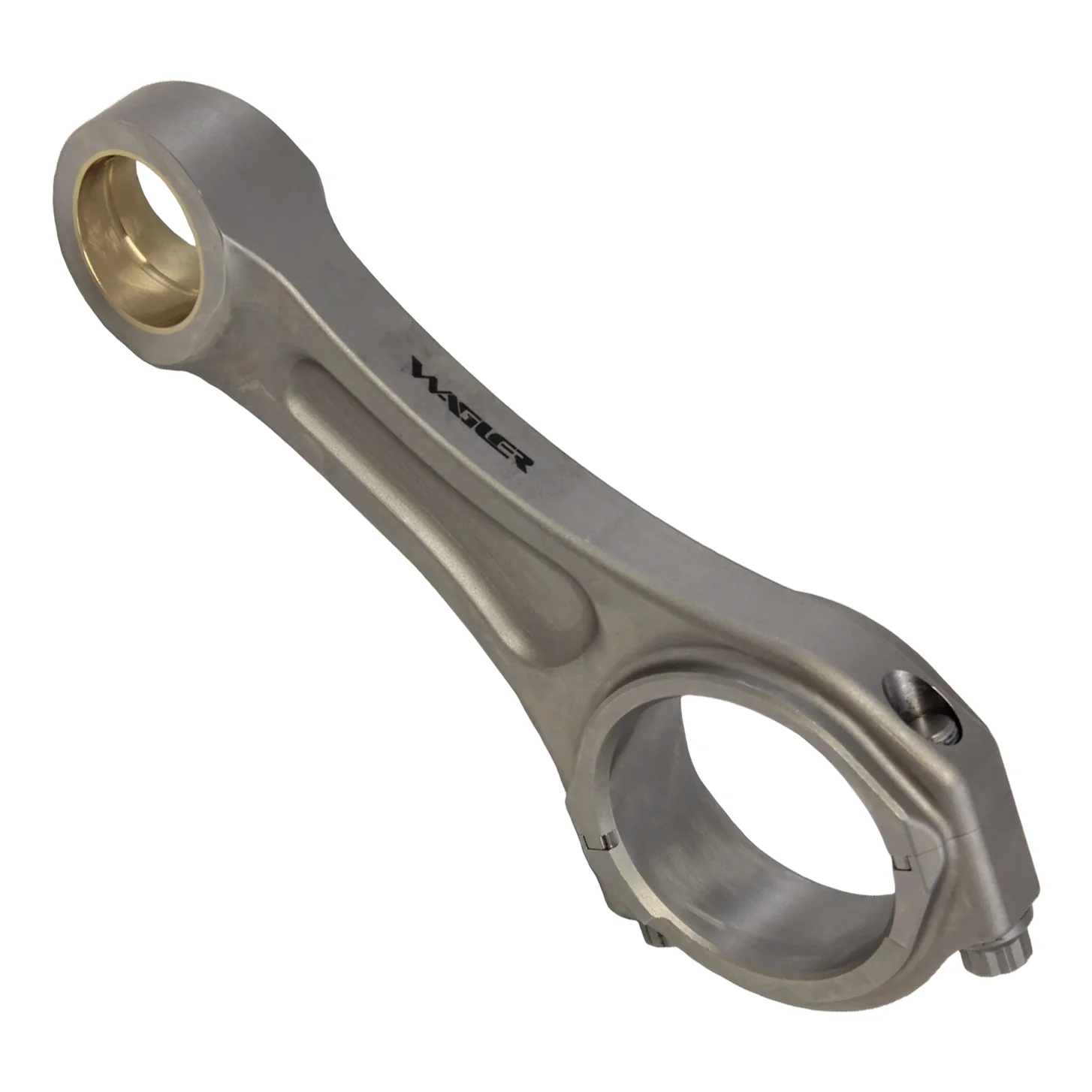

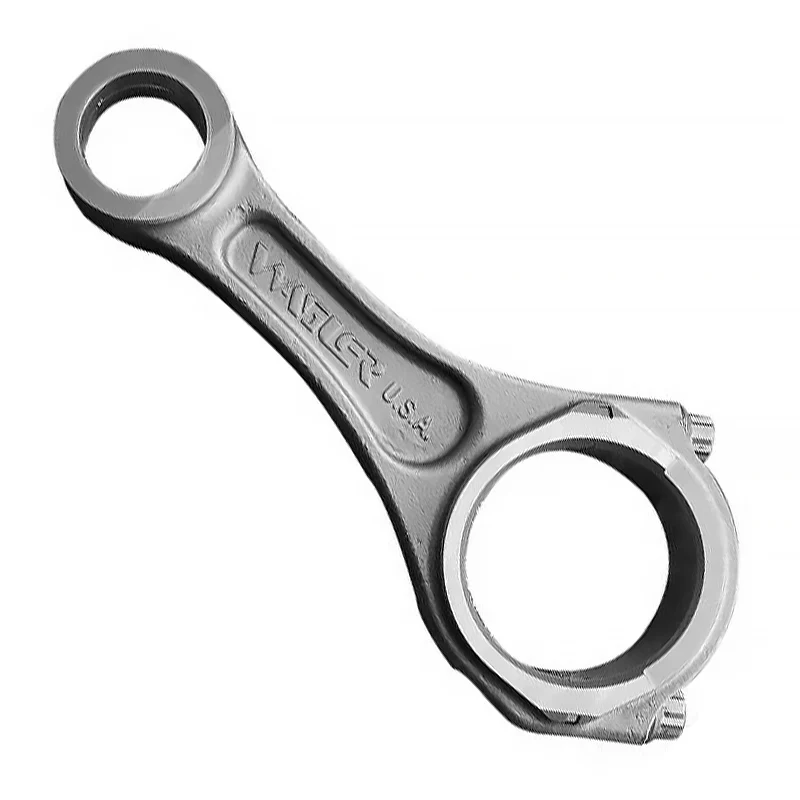

Wagler CRD5.9/6.7ST Street Fighter Connecting Rods for 89-18 Cummins 5.9/6.7L Up to 1500 hp

$1,950.00

$682.50

-65%
Thumbnail 1

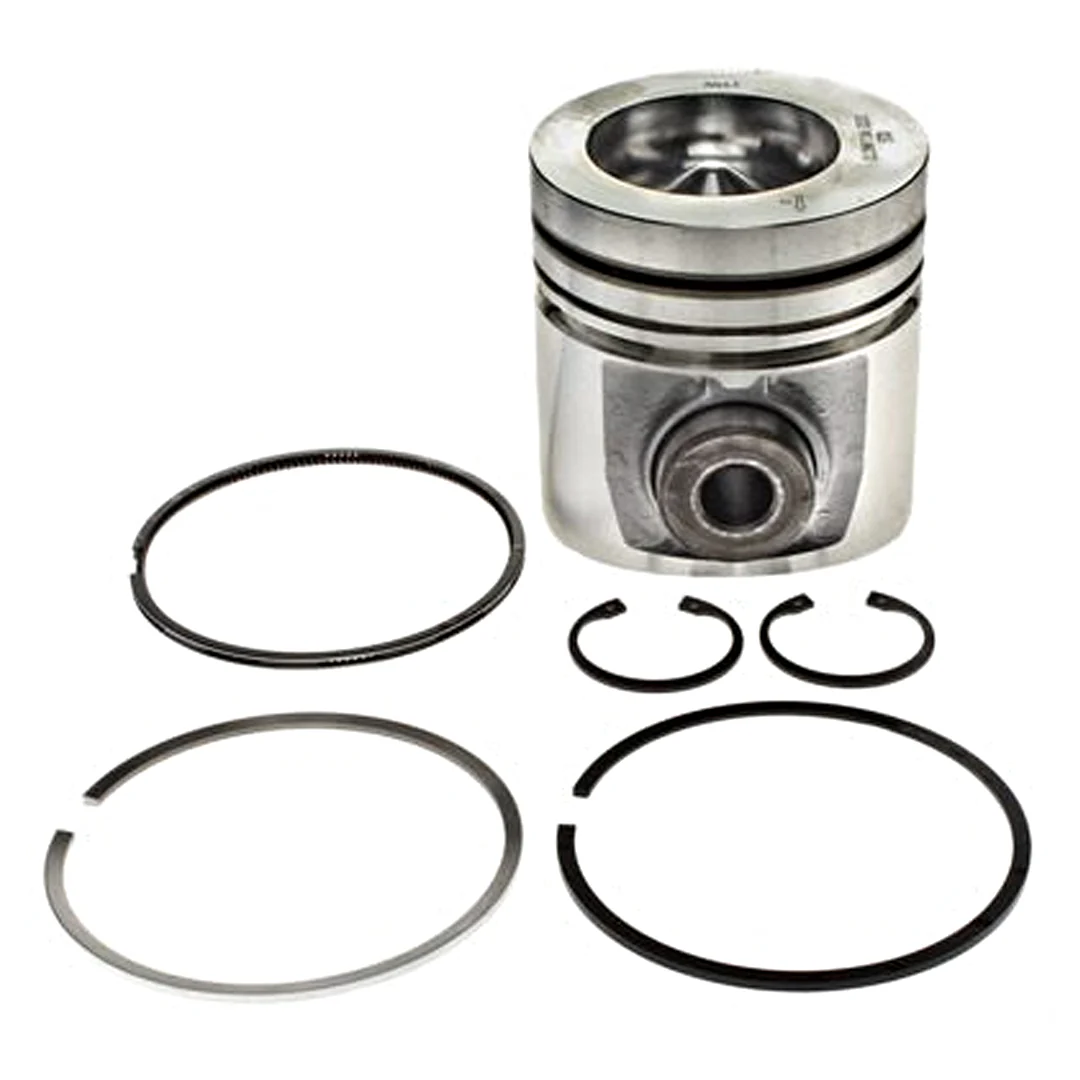

MAHLE 225-3523 155° Bowl Piston with Rings Individual

$160.00

$56.00

-65%
Thumbnail 1

Wagler WCP C-C 7.558 Big Boy Rods 89-18 Cummins 5.9/6.7 Connecting Rods 1600hp Plus

$3,060.74

$1,071.26

-65%
Thumbnail 1

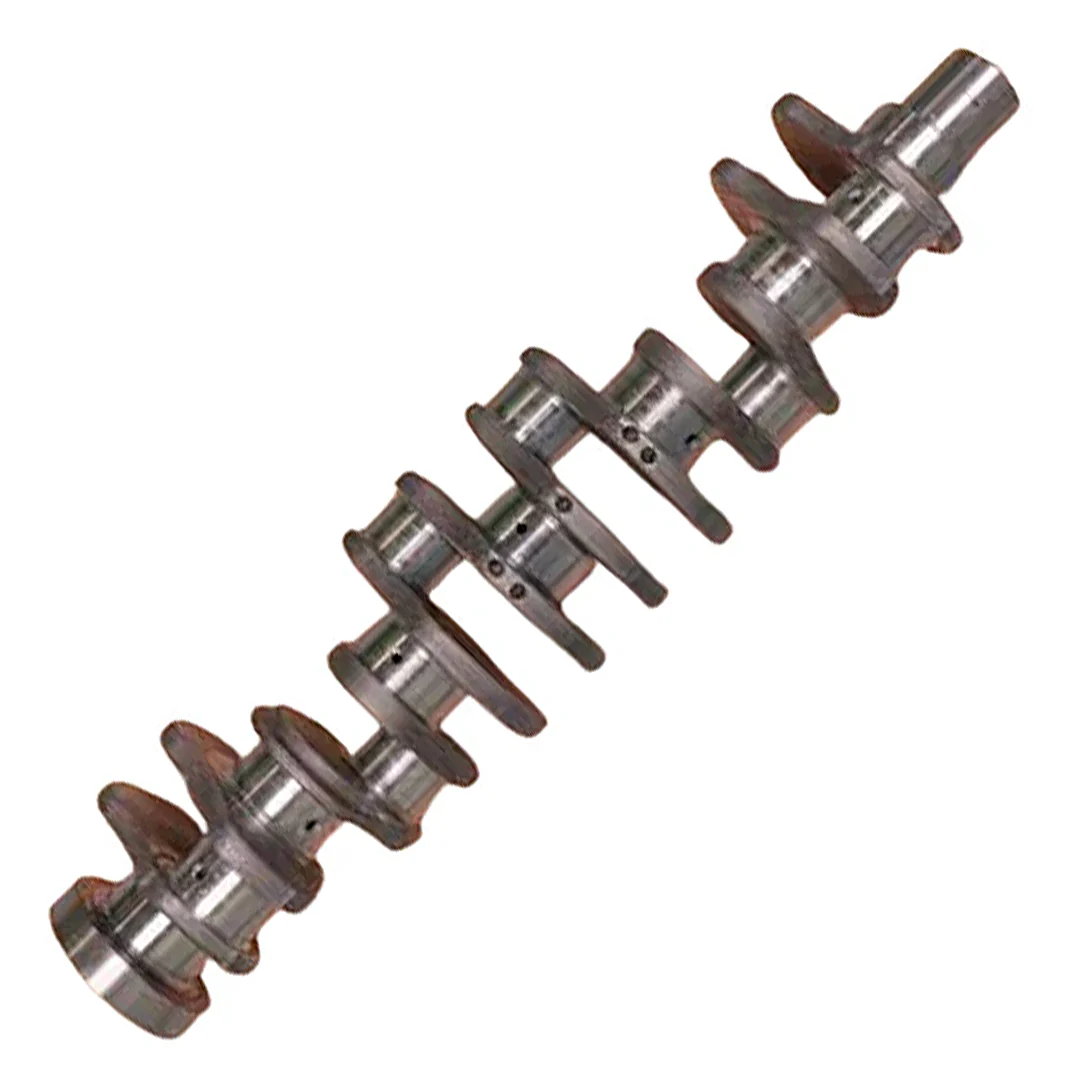

Power Driven Factory Replacement Crankshaft for 89-98 Cummins

$1,390.00

$486.50

Thumbnail 1Thumbnail 2

Cummins 3904483 89-18 5.9L/6.7L Cummins Crankshaft Gear Dowel

$10.00

-65%
Thumbnail 1

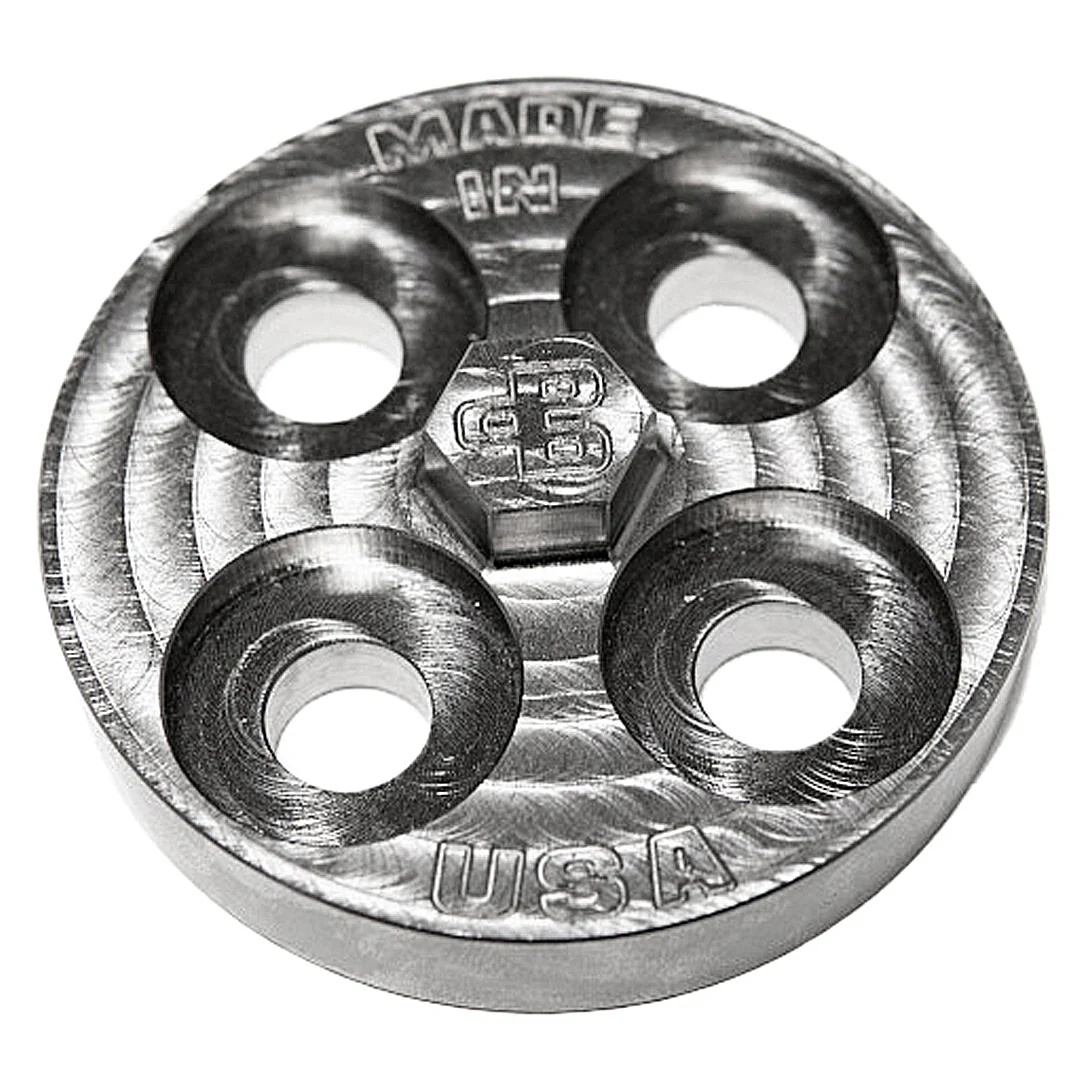

Power Driven Crankshaft Barring Tool
