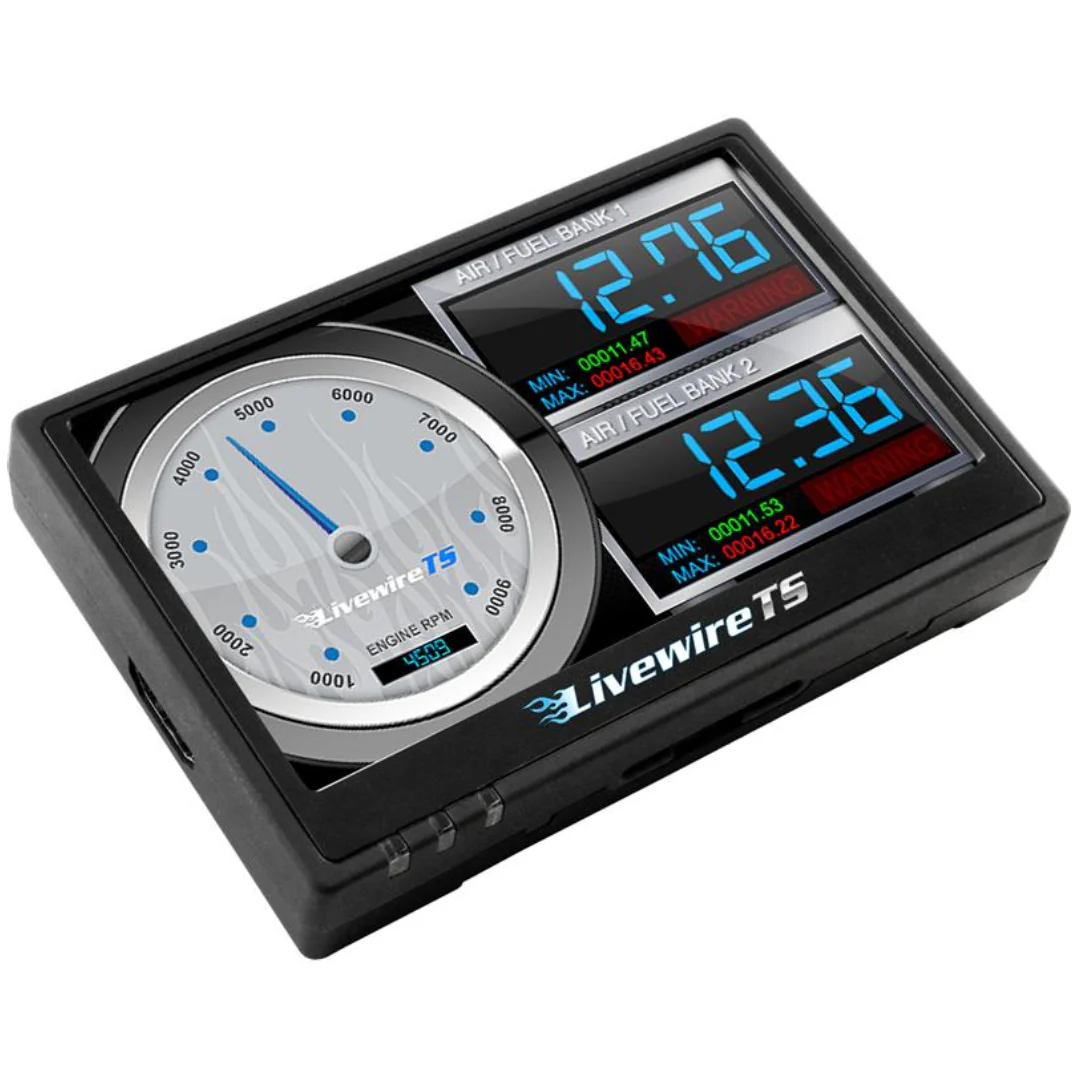

SCT 5015P Livewire TS+ Performance Programmer - Bundle

The SCT 5015P Livewire TS Performance Programmer is a performance upgrade and monitor all in one for your 1999-2019 Ford Powerstroke. From the factory, your vehicle's computer is calibrated for the masses, designed with the average driver in mind, not the performance enthusiast. This not only leaves valuable Horsepower & Torque hidden inside your vehicle, but it also makes for a mediocre driving experience. The Livewire TS unlocks your vehicle's hidden performance by re-calibrating your vehicle's computer for Maximum Horsepower & Torque, Increased Throttle Response, Firmer Shifts and even Increased Fuel Mileage.

SCT's Pre-loaded Dyno Proven tune files optimize the vehicle's Air / Fuel Ratio, Engine Timing & Fuel Curves for Maximum Performance while maintaining the factory reliability & drivability. Whether towing a fully loaded car trailer or a 5th Wheel Camper, SCT's Towing tune files add the perfect mix of Horsepower & Torque to help make hauling loads easier. SCT's Performance & Towing tune files not only optimize the vehicle for Maximum Performance, they often INCREASE the vehicle's FUEL MILEAGE by up to 1-2MPG!

Features:

• Rear View Camera Input
• Stores Up To 10 Custom Tunes
• Pre-Loaded Dyno Proven Tunes
• Built-In Performance Calculator
• Read & Clear DTC Trouble Codes
• Full Color 4" Touch Screen Display
• High Speed Data Logging / Monitoring
• Built-In Wifi For Easy Wireless Updates
• User Adjustable Themes & Tune Options
• Improved User Interface For Easier Navigation
• Rear Exit Cable Connection For Easier, Cleaner Device Mounting.

Livewire TS Includes:

• Livewire TS Performance Tuner & Monitor
• OBDII Cable w/ Video & Analog Input
• High Speed Mini USB Cable
• Livewire TS Suction Cup Windshield Mount
• SCT Chrome Badge

Applications: 1999-2003 F-Series Super Duty 7.3L: 110HP & 200ft-lbs. 2003-2007 F-Series Super Duty 6.0L: 120HP & 248ft-lbs. 2008-2010 F-Series Super Duty 6.4L: 113HP & 141ft-lbs. 2011-2012 F-Series Super Duty 6.7L: 88HP & 101ft-lbs. 2013-2019 F-Series Super Duty 6.7L: 135HP & 151ft-lbs.



5015P Livewire TS PID's Monitored
6.7L Powerstroke	7.3L/6.0L Powerstroke	6.4L Powerstroke
ABSOLUTE LOAD IN PERCENT ACCEL PEDAL POSITION D ACCEL PEDAL POSITION E ACCEL PEDAL POSITION VOLTS AMBIENT AIR TEMP C AMBIENT AIR TEMP F AVERAGE DISTANCE BETWEEN REGEN BAROMETRIC PRESSURE BATTERY VOLTAGE DISTANCE SINCE DTC CLEARED KM DISTANCE SINCE DTC CLEARED MILE DISTANCE SINCE LAST REGEN DPF SOOT MASS DTC COUNT DTC COUNT TCM ENGINE COOLANT TEMP C ENGINE COOLANT TEMP F ENGINE OIL TEMP FUEL LEVEL SENSOR FUEL RATE GEAR COMMANDED INTAKE AIR TEMP VOLTS MAF FREQUENCY MAP ABSOLUTE KPA REDUCTANT LINE PRESSURE REDUCTANT UREA LEVEL RPM RUN TIME TCC SOLENOID PRESSURE KPA TCM TRANS FLUID TEMP F TCM TURBO BOOST VEHICLE SPEED MPH TCM	ACCEL PEDAL POSITION AIR FLOW #/MIN BAROMETRIC PRESSURE IN HG BATTERY VOLTAGE COMMANDED GEAR COOLANT TEMP ENGINE OIL TEMP F INJECTION CONTROL PRESSURE INJECTOR PULSE WIDTH INTAKE AIR TEMP LOAD TURBO BOOST MAP RPM TORQUE CONVERTER CLUTCH DUTY CYCLE TRANS TEMP (6.0L ONLY) VEHICLE SPEED VGT DUTY CYCLE FICM_IGNITION FICM_LOGIC_POWER FICM_MAIN_INTERNAL_INJECTOR_PWR	BAROMETRIC PRESSURE KPA BATTERY VOLTAGE COOLANT TEMP DPF REGEN STATUS EGT ENGINE LOAD ENGINE OIL TEMP INTAKE AIR TEMP MAF PEDAL POSITION RPM SECONDARY EGT TRANS TEMP TCM TURBO BOOST VEHICLE SPEED

Note: SCT 9817 EGT Kit is required to read exhaust gas temperatures. (Not included)
